Product Overview
The valve is a thin non-return valve, it has a simple structure, beautiful appearance, light weight, convenient installation. Mainly applicable to water supply systems, petroleum, chemical, metallurgical and other industrial sectors have limited space to install the application places the most.
Main technical parameters
| DN | D | L | D | ||||
| I型 | II型 | PN1.0 | PN1.6 | PN2.5 | PN4.0 | ||
| 50 | 25 | 15 | 22 | 109 | 109 | 109 | 109 |
| 65 | 38 | 15 | 22 | 129 | 129 | 129 | 129 |
| 80 | 46 | 15 | 22 | 144 | 144 | 144 | 144 |
| 100 | 72 | 15 | 24 | 164 | 164 | 170 | 170 |
| 125 | 95 | 16 | 26 | 186 | 186 | 194 | 194 |
| 150 | 114 | 19 | 29 | 221 | 221 | 226 | 226 |
| 200 | 140 | 29 | 43 | 275 | 275 | 283 | 293 |
| 250 | 188 | 29 | 43 | 330 | 331 | 343 | 355 |
| 300 | 216 | 38 | 50 | 380 | 386 | 403 | 420 |
| 350 | 263 | 41 | 52 | 440 | 446 | 460 | 477 |
| 400 | 305 | 51 | 62 | 491 | 498 | 517 | 549 |
| 450 | 356 | 51 | 62 | 541 | 558 | 567 | 574 |
| 500 | 406 | 65 | 80 | 596 | 620 | 627 | 631 |
| 600 | 482 | 70 | 90 | 698 | 737 | 734 | 750 |

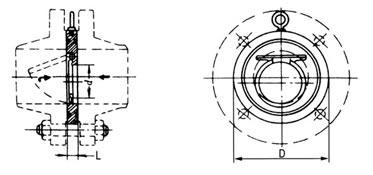

Drawing
