Class 150~300 Butterfly Swing Check Valve

Product introduction
The wafer flange clamped butterfly check valve is a energy-save product.It is manufactured based the foreign advanced technology and in accordance with relative international standards.This product is featured by excellent retaining per-formance,high safety and reliability and low flow resistance.It is suitable for systems in the industries of petrochemical food processing,medicine,textile,paper-making.Water,supply,drainage,metallurgy,energy,and light industry,etc,used as a check valve in one way.

Standerds compliance
Design and Manufacture: ANSI B16.34,API 6D
Face to face: API 6D
Flanged connection: 2~~24~to ANSI B16.5
22~,26~~36~to MSS-SP-44 to API 605 on request
Test and inspection: API 6D
Shell test 150Lb 450 PSI
300Lb 1125 PSI
Seat test 150Lb 315 PSI
300Lb 815 PSI(Hydrostatic)80PSI(Air)

Featutes

1.Small in size,light in weight,compact in structure,easy in maintenance.
2.Two torsion springs are used excerting on each of the pair valve plates.Which close the plates quickly and automatically.
3.The quick-close action prevents the medium from flowing back and eliminates water-hammer effect.
4.This valve is short in length,so that it is rigid and easy to mount.
5.It is easy to install on pipeline which is laid horizontally or vertically.
6.This valve is tightly sealed without leakage under the pressure water test.
7.Safe and reliable in operation,high interference-resistance.
8.The connection dimensions of flanges accord with the standards of GB4216-84 GB4216.84
9.The face to face dimensions are in accordance with GB12221-89.ISO5752-82.The stem of the valve should be perpendicular to the horizontal level when the valve is mounted on horizontal pipeling.For vertical installation the direction of flow should be downward.

Materials for main parts

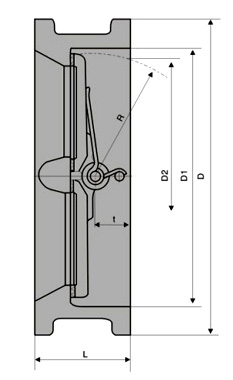

Drawing
