Product introduction
Resilient seated gate valve can be equipped with all kinds of electric actuator to clients' requirements to realize long-distance control and automatic control.It has the features such as quickness,liableness and easy installation etc..It is widely used in tap water industry,sewage treatmen, shipping,construction,petroleum,chemicals,food,pharmacy,textile,electric power,metallurgy and energy system's pipeline to adjust and shut off fluid.
Material
| Serial no. | Part | Material |
| 1 | Body | Grey cast iron,ductile cast iron,cast steel |
| 2 | Disc | Ductile cast iron packed with rubber or EPDM outside |
| 3 | Stem | Stainless steel |
| 4 | Cover | Grey cast iron,ductile cast iron,cast steel |
| 5 | Support | Grey cast iron,ductile cast iron,cast steel |
| 6 | Electric actuator |
Main technic-al parameters
Nominal pressure: 1.0-2.5MPaWorking temp.:0-120Flanged end:GB/T17241.6 GB9113,ASME 16.5 etc..
Nominal diameter: 50-400mmService:water,oils,gas etc..Inspection and test:GB 13927 API 598
Main dimensions unit:mm
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| H(full open) | 732 | 773 | 820 | 870 | 915 | 1003 | 1110 | 1263 | 1360 | 1550 | 1610 | 1900 | 1938 | 2120 |

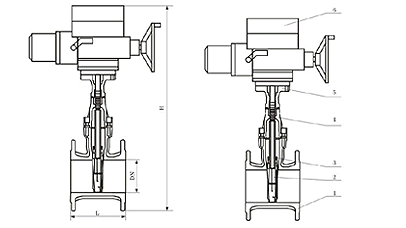

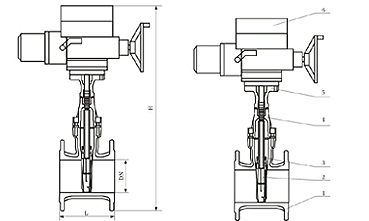

Drawing
