D71X wafer soft seat butterfly valve

D71X wafer soft seat butterfly valve

Main connection dimension ard outline dimension

unit:mm

DN	Main connection dimension
	Main outline dimension					1.0MPa		1.6MPa		2.5MPa
	L	H	H0	A	B	D0	n-d	D0	n-d	D0	n-d
50	43	63	235	270	110	110	4-14	125	4-18	125	4-18
65	46	70	250	270	110	130	4-14	145	4-18	145	4-18
80	46	83	275	270	110	150	4-18	160	8-18	160	8-18
100	52	105	316	270	110	170	4-18	180	8-18	180	8-18
125	56	115	340	310	110	200	8-18	210	8-18	210	8-18
150	56	137	376	310	110	225	8-18	240	8-22	240	8-22
200	60	164	430	353	150	280	8-18	295	8-22	295	12-22
250	68	206	499	353	150	335	12-18	350	12-22	355	12-26
300	78	230	570	380	150	395	12-22	400	12-22	410	12-26

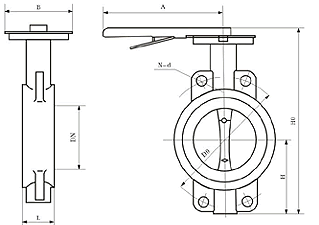

Drawing
