Product introduction
The valve disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.Non-rising resilient seated gate valve solves the problem in general gate valve such as leakage,rusting etc. and saves installation space.It is widely used in tap water in dustry,sewage treatment,shipping,construction,petroleum,chemicals,food,pharmacy,textile,electric power,metallurgy and energy system's pipeline to adjust and shut off fluid.
Main material
| Serial no. | part | material |
| 1 | Body | Grey cast iron,ductile cast iron,cast steel |
| 2 | Disc | Ductile cast iron packed with rubber or EDPM outside |
| 3 | Bolt | Carbonized treatment |
| 4 | Gasket | Buna-N rubber or EDPM |
| 5 | Cover | Grey cast iron,ductile cast iron,cast steel |
| 6 | Stem | tainless steel |
| 7 | O-ring | Buna-N rubber or EPDM |
| 8 | Thrust bearing | Gunmetals |
| 9 | Bolt | Stainless steel |
| 10 | Gland | ductile cast iron,cast steel |
| 11 | Dust proof gasket | Buna-N rubber |
| 12 | Handwheel(transmission cap) | Cast iron |
Main technic-al parameters
Nominal pressure: 1.0-2.5MPaWorking temp.:0-120Flanged end:GB/T17241.6 GB9113
Nominal diameter: 50-400mmService:water,oils,gas etc..Inspection and test:GB 13927 API 598
Main dimensions
unit:mm
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| Hmin(full close) | 313 | 332 |
372 |
424 | 497 | 562 | 680 | 837 | 948 | 1010 | 1220 | 1280 | 1480 | 1665 |
| Hmax(full open) | 355 | 375 | 415 | 476 | 540 | 600 | 720 | 875 | 990 | 1050 | 1245 | 1310 | 1560 | 1750 |

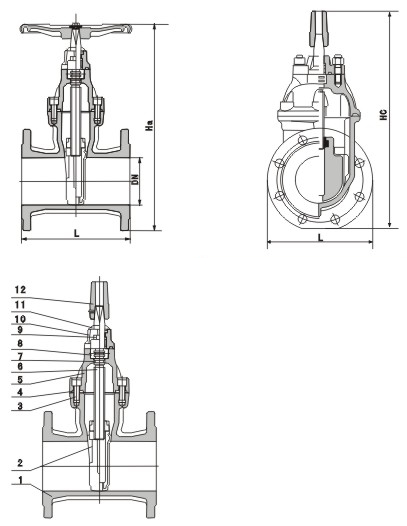

Drawing
